Vertical Milling Machine

Features

• The turret type milling head is ruggedly constructed, combined with a heavy duty NST#40 spindle, making this unit excellent for heavy duty machining.

• The spindle is precision manufactured from quality alloy steel SCM-21, carburized, tempered, and precision ground for maximum material stability. The spindle runs on high precision P4 class bearings.

• Designed with an automatic forced lubrication system for the ground gears, clutch, and bearings inside the milling head, ensuring long service life of the head parts.

• FC-30 and FCD-45 high quality castings are tempered for maximum wear resistance and strain-free performance.

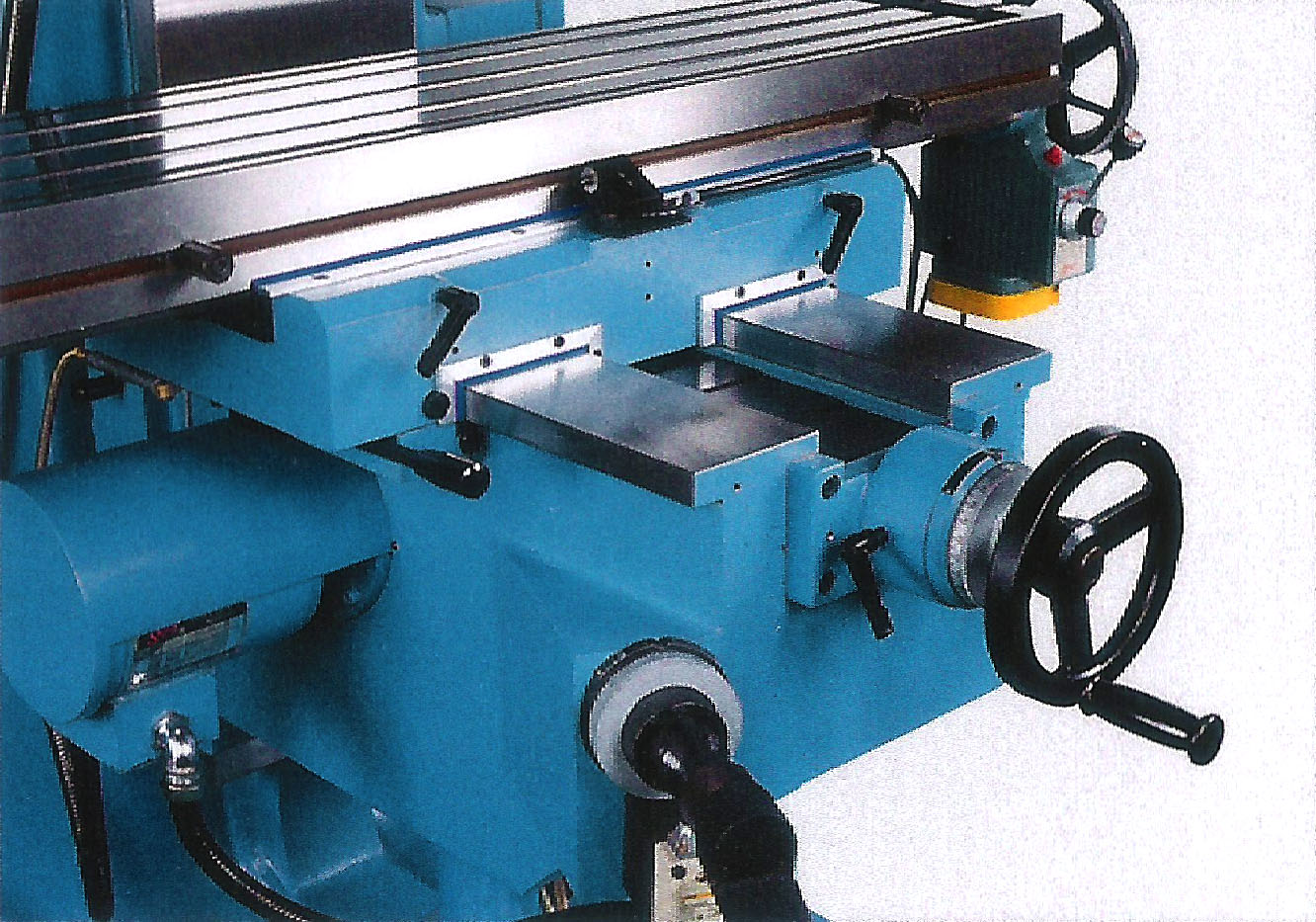

• The X and Y axis feeds are driven by a high precision C5 class preloaded, double nut ball screw. Each axis has a lock handle. Smooth feed, minimum backlash, superior positioning accuracy.

• The table sideways and upper surface are tempered and high frequency hardened. Both surfaces on the T-slot are precision ground, giving an accurate reference for machining.

• The body & base, and Z-travel slideway are one piece constructed.

• Automatic lubrication for X, Y and Z-axis slideways and feed screws ensures accurate motion for all parts. Lubrication interval is 60 minutes.

Standard Accessories

• Service tools

• Tool box

• Front and rear chip guard

Optional Accessories

• Halogen work lamp

• Spindle feed depth gauge

• Digital readout

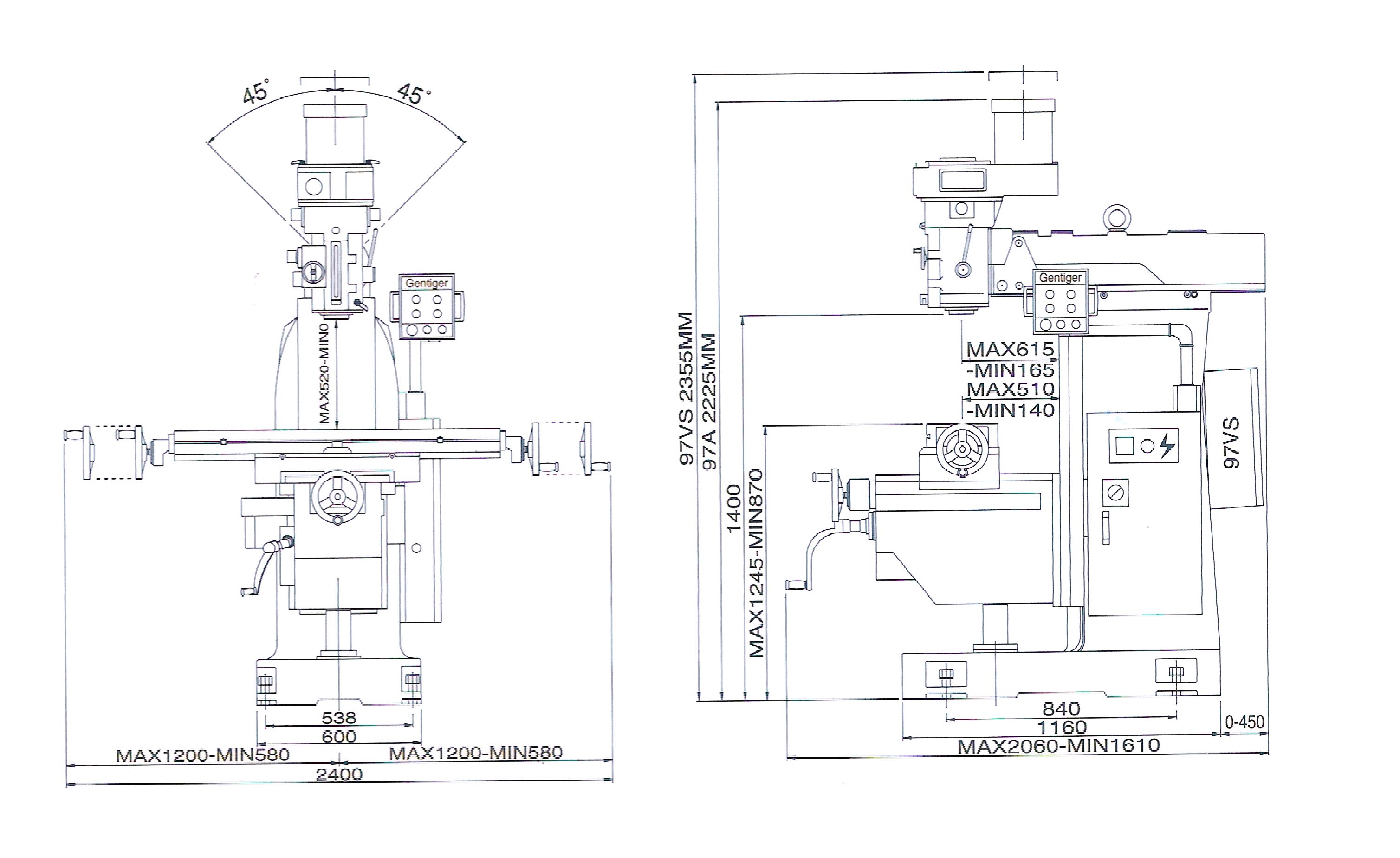

Specifications

TURCITE-B COATED SLIDEWAYS

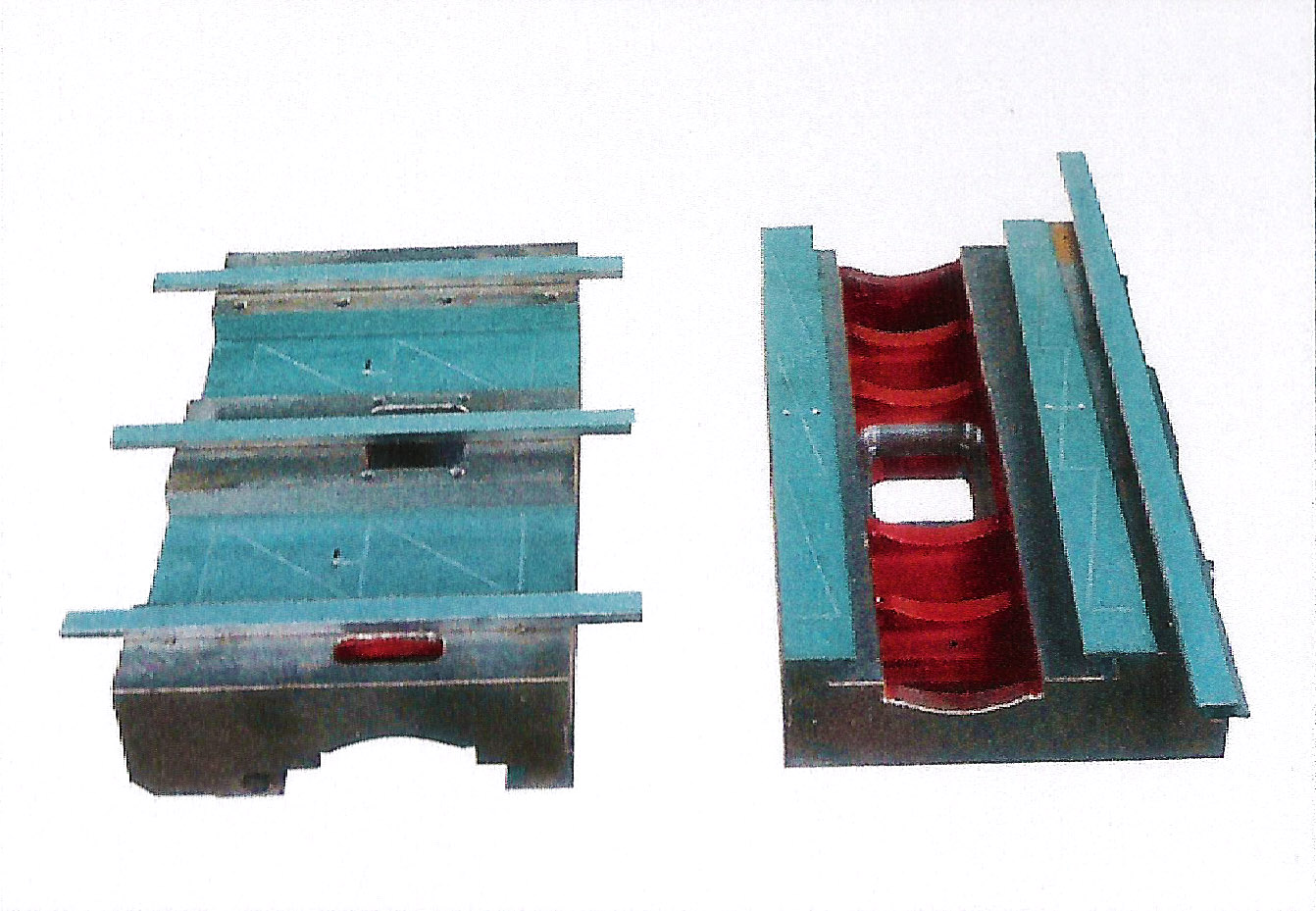

The X and Y axis slideways, dove tailed surfaces and gibs are completely coated with TURCITE-B, and precision hand scraped. Superior travel accuracy is ensured, with maximum wear resistance.

CHIP GUARD WIPER

The X, Y, and Z axes are provided with chip guard wipers, fully preventing chips from entering and damaging the slideways.

CENTRALIZED WEIGHT

The machine is perfectly centered for improved stability.

PRECISION BALL SCREW FEED

The X and Y axis feeds are driven by a high precision preloaded C5 class double nut ball screw.
Extremely smooth feed and high positioning accuracy.
